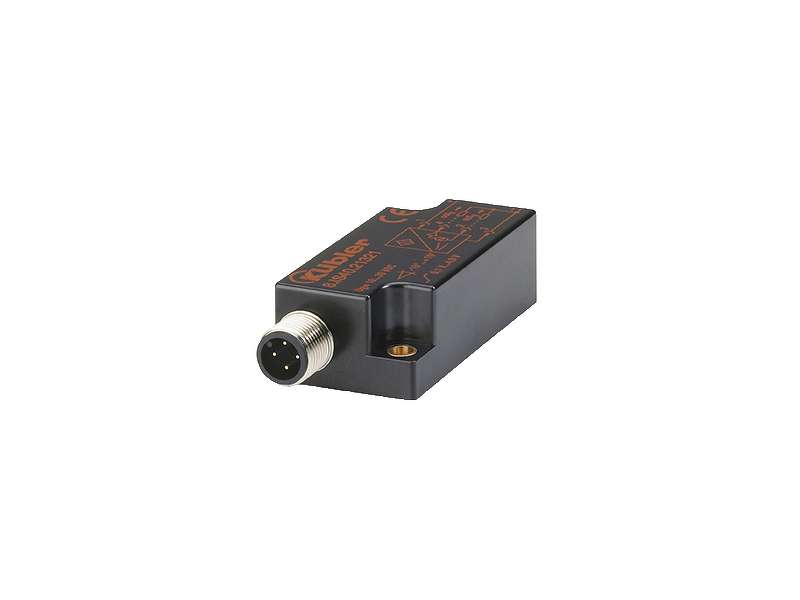

Kuebler Dvodimenzionalni inklinometar IS40 sa analognim interfejsom ; 8.IS40.2XXX1
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments. The IS40 inclinometer is used for the acquisition of a tilt angle in the measuring...
Cena na upit
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.
The IS40 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -30°C to +70°C, it is excellent for, among other uses, outdoor use in mobile automation.Innovations
- Robust construction.
- High resolution and accuracy.
- Current or voltage interface.
- High shock resistance.
- Zero point adjustment.
Compact and versatile
- Small design - low space requirement.
- For use in automotive engineering, in solar systems,
crane and lifting technology or in commercial vehicles.
| Mechanical | |
|---|---|
| Dimension | 60 mm x 30 mm x 20 mm |
| Connection types | M12 connector |
| Working temperature | -30 °C ... +70 °C |
| Protection level |
IP68 IP69k |
| Electrical | |
|---|---|
| Interfaces |
Analog 0.1–4.9 V Analog 4–20 mA Ratiometric 2–98% |
| Supply voltage |
5 V DC 10...30 V DC |
-
IS40-2-dim en
-
IS40 en
