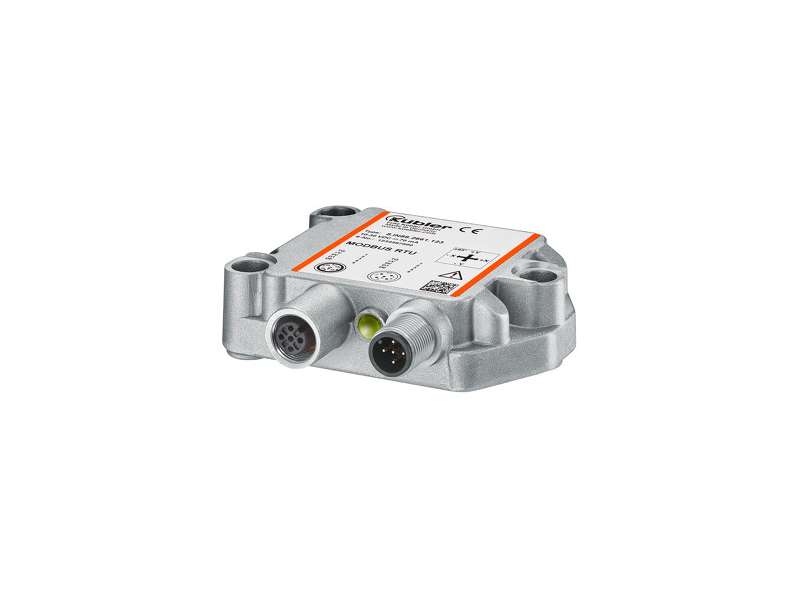

Kuebler Dvodimenzionalni inklinometar IN88 sa Modbus komunikacijom ; 8.IN88.2661.12X
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments. The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring...
Cena na upit
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.
The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to max. IP69k as well as the wide temperature range from -40°C to +85°C, it is excellent for, among other uses, outdoor use in mobile automation or in solar installations.
Robust
Versatile
- High IP67 and IP69k protection in one device.
- Highest resistance due to metal housing.
- Stable accuracy over the entire temperature range from -40 to +85°C.
- No long-term drift thanks to sensor array technology.
Versatile
- Parameterizable filter.
- Measuring direction 1- or 2-dimensional.
- With 1 x M12 plug or 2 x M12 plugs.
- Stack mounting for redundancy possible.
| Mechanical | |
|---|---|
| Dimension | 60 mm x 80 mm x 23 mm |
| Connection types | M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Electrical | |
|---|---|
| Measuring range | ± 85° |
| Accuracy | ± 0,2° |
| Interfaces | Modbus |
| Supply voltage | 10...30 V DC |
-
IN88 Modbus en
