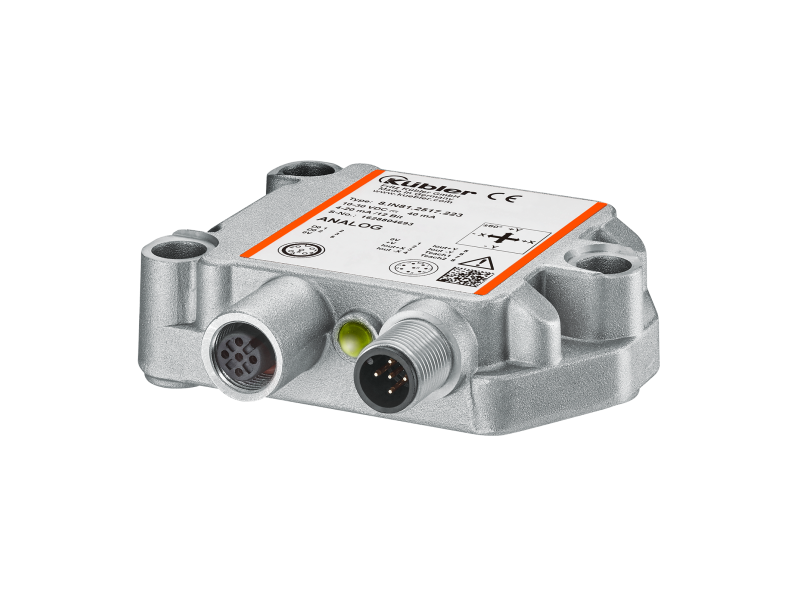

Kuebler Dvodimenzionalni inklinometar IN81 sa analognim interfejsom ; 8.IN81.2XXX.X2X
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments. The IN81 inclinometer is used for the acquisition of a tilt angle in the measuring...
Cena na upit
2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.
The IN81 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40°C to +85°C, it is excellent for, among other uses, outdoor use in mobile automation.
Robust
Versatile
- High IP67 and IP69k protection in one device.
- Highest resistance due to metal housing.
- Stable accuracy over the entire temperature range from -40 to +85°C.
- No long-term drift thanks to sensor array technology.
Versatile
- Preset and Teach functions.
- Measuring direction 1- or 2-dimensional.
- With switching outputs.
- Stack mounting for redundancy possible.
| Mechanical | |
|---|---|
| Dimension | 60 mm x 80 mm x 23 mm |
| Connection types | M12 connector |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Electrical | |
|---|---|
| Measuring range | ±85° |
| Accuracy | ± 0,2° |
| Interfaces |
Analog 0.5–4.5 V Analog 0.1–4.9 V Analog 0–10 V Analog 0–5 V Analog 4–20 mA |
| Supply voltage |
10...30 V DC 15...30 V DC |
-
IN81 en
