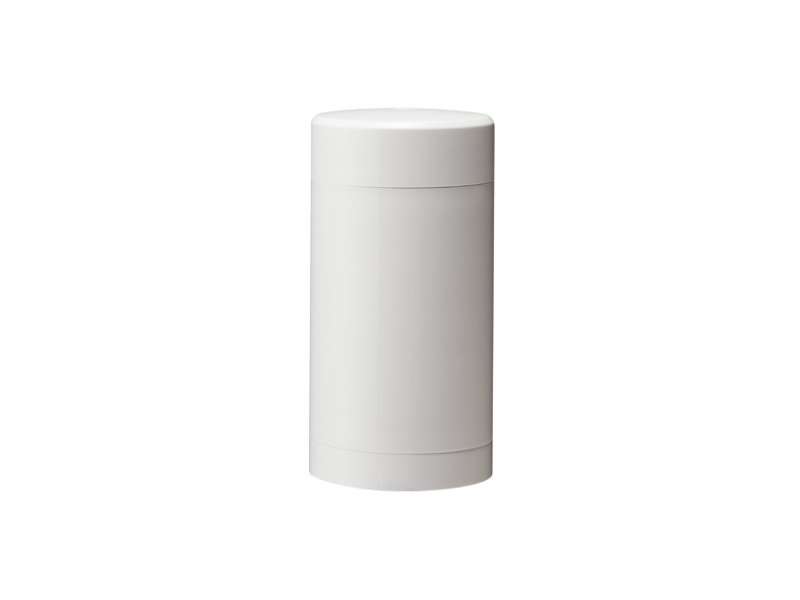

Patlite Osnovni modul za signalni toranj LR5, Φ50, 24VDC; LR5-02KTNW
Base unit of the fully modular LR5 signal tower series with a diameter of 50mm Modular system Twist & Lock -System Protection class IP65 Mounting bracket with...
Price on request
Base unit of the fully modular LR5 signal tower series with a diameter of 50mm
- Modular system
- Twist & Lock-System
- Protection class IP65
Mounting bracket with punched holes and terminal block
Integrated punched holes for pole mounting with POLE22
| Dimension | 9,9x5x5 CM |
| Diameter | 50mm |
| Rated Voltage | 24V DC |
| Flashing Rate (with buzzer/flash module only) | 60±2 Flashes per minute |
| Unit Weight | 0.10kg |
| Body Color | Off-white |
| Body/Lens Material | PC |
| Connection | Terminal block |
| Input Type | PNP/NPN |
| Mounting Style | Mounting bracket with punched holes |
| Mounting Location | Indoors |
| Mounting Direction | Upright |
| Protection Rating | IP65 / NEMA TYPE 4X, 13 |
| Operating Ambient Temp. | -20℃ to +50℃ |
| Operating Ambient Humidity | Less than 90% RH (No Condensation) |
| Storage Ambient Temp. | -30℃ to +60℃ |
| Storage Ambient Humidity | Less than 90% RH (No Condensation) |
| Insulation Resistance | More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
| Withstand Voltage | 1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation |
| Conformity Standards |
- UL 508, CSA-C22.2 No.14 - EMC Directive (EN 61000-6-4, EN 61000-6-2) - RoHS Directive (EN IEC 63000) - FCC Part 15 Subpart B Class A - KC (KN 61000-6-4, KN 61000-6-2) |
-
LR Specifications 24V DC Type (En) (3)
