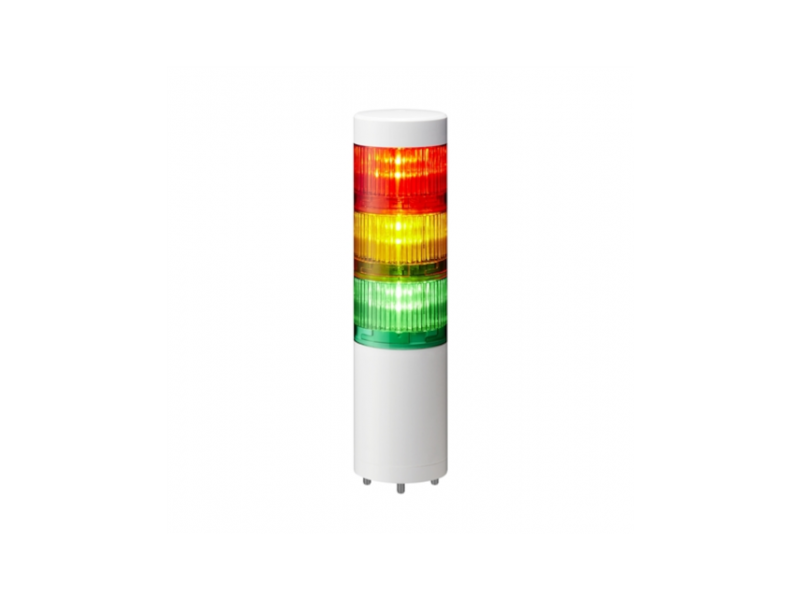

Name: Patlite Signalni toranj LR6, Φ60, 3 nivoa (RYG) , 24VDC; LR6-302WJNW-RYG
Brand: Patlite
SKU: LR6-302WJNW-RYG
Availability: OutOfStock

0 Compare products

0 View cart

+381 11 257 19 22

Patlite Signalni toranj LR6, Φ60, 3 nivoa (RYG) , 24VDC; LR6-302WJNW-RYG

60mm 3-tier, UL CE IP65 DC 24V, Direct Mount with Cable, No Flashing/Buzzer, Off-white Re-designed lens and improved module construction delivering bright, even...

Brand: Patlite
Product Code: LR6-302WJNW-RYG
Availability: Check availability

Price on request

60mm 3-tier, UL CE IP65 DC 24V, Direct Mount with Cable, No Flashing/Buzzer, Off-white

Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.

Dimension	60mm diameter
Rated Voltage	24V DC
Number of LED Tiers	3
LED Colors	Red / Amber / Green
Buzzer	Typ. 88dB
Flashing Rate (with buzzer/flash module only)	60±2 Flashes per minute
Unit Weight	0.40kg
Body Color	Off-white
Body/Lens Material	PC
Connection	Cable (1000mm)
Input Type	PNP/NPN
Mounting Style	Direct Mount
Mounting Location	Indoors
Mounting Direction	Upright
Protection Rating	IP65 / NEMA TYPE 4X, 13
Operating Ambient Temp.	-20℃ to +50℃
Operating Ambient Humidity	Less than 90% RH (No Condensation)
Storage Ambient Temp.	-30℃ to +60℃
Storage Ambient Humidity	Less than 90% RH (No Condensation)
Insulation Resistance	More than 1MΩ at 500V DC between live part and non-current carrying metallic part
Withstand Voltage	1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation
Conformity Standards	- UL 508, CSA-C22.2 No.14 - EMC Directive (EN 61000-6-4, EN 61000-6-2) - RoHS Directive (EN IEC 63000) - FCC Part 15 Subpart B Class A - KC (KN 61000-6-4, KN 61000-6-2)
