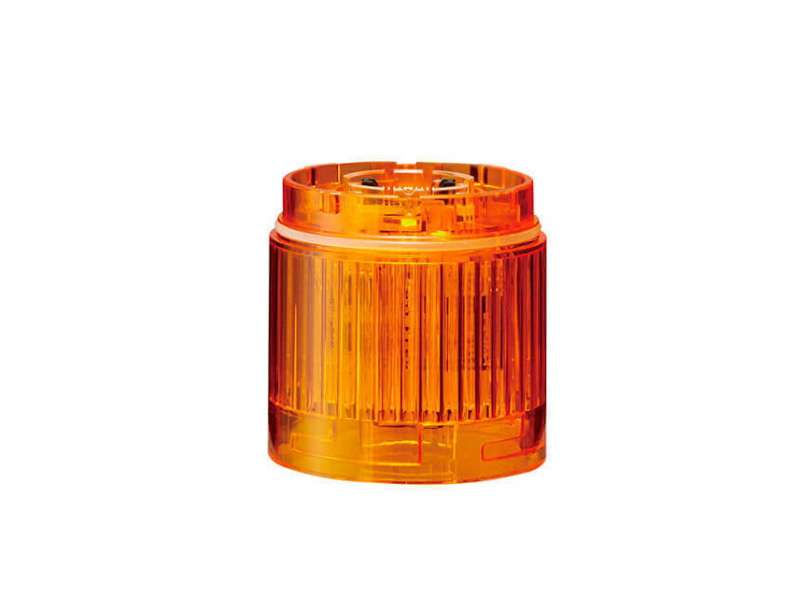

Patlite Svetlo za signalni toranj LR5, Φ50, žuto (Y) , 24VDC; LR5-E-Y
50mm UL CE DC 24V, LED Unit, Amber Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd...
50mm UL CE DC 24V, LED Unit, Amber
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units
|
Dimension |
5x5x5 cm |
|
Diameter |
50mm |
|
Rated Voltage |
24V DC |
|
LED Colors |
Amber |
|
Unit Weight |
0.04kg |
|
Mounting Location |
Indoors |
|
Mounting Direction |
Upright |
|
Operating Ambient Temp. |
-20℃ to +50℃ |
|
Operating Ambient Humidity |
Less than 90% RH (No Condensation) |
|
Conformity Standards |
- UL 508, CSA-C22.2 No.14 - EMC Directive (EN 61000-6-4, EN 61000-6-2) - RoHS Directive (EN IEC 63000) |
-
LR Specifications LED Unit (En)
