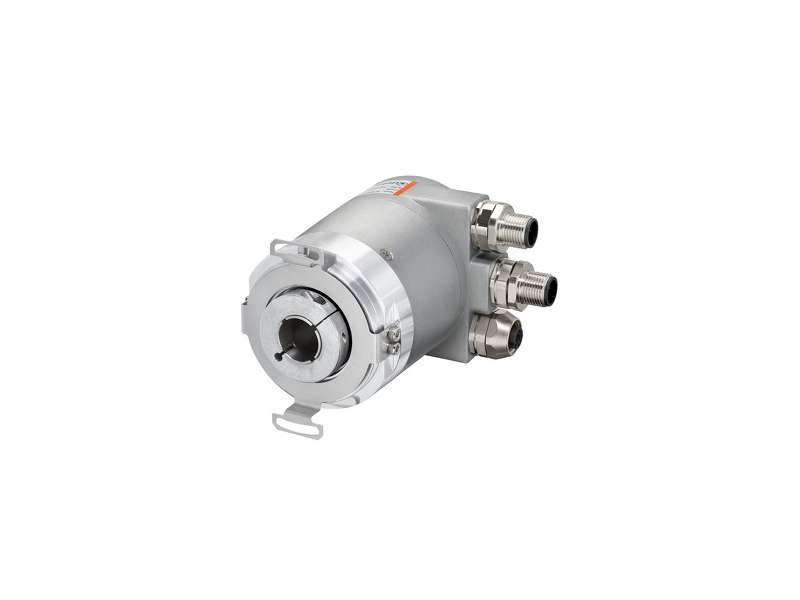

Kuebler Sendix 5888 - Multiturn enkoder za field-bus komunikaciju sa ProfibusDP interfejsom ; 8.5888.XX3X.311X
For field bus communication: Encoders with PROFIBUS DP interface. The absolute encoders Multiturn Sendix 5868 / 5888 with PROFIBUS DP interface and optical sensors...
Cena na upit
For field bus communication: Encoders with PROFIBUS DP interface.
The absolute encoders Multiturn Sendix 5868 / 5888 with PROFIBUS DP interface and optical sensors are suitable for all Profibus applications.
With a maximum resolution of 28 bits, these encoders are also available in a version with blind hollow shaft up to 15 mm.
Reliable
- Proven use in applications with the highest demands such as wind power or mobile automation.
- Absolutely reliable operation in the range of strong magnetic fields due to mechanical gear with optical sensor technology.
- Fast, simple, error-free connection thanks to variant with M12 plug.
- Extensive programming possibilities by using the latest encoder profile.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm hollow shaft, blind hole 12 mm hollow shaft, blind hole 14 mm hollow shaft, blind hole 15 mm hollow shaft, blind hole 1/2 " hollow shaft, blind hole 3/8 " hollow shaft, blind hole |
| Flange type |
Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm Ø 72.00 mm |
| Working temperature | -40 °C ... +80 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Radial cable M23 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 470 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
16 bits singleturn 12 bits multiturn |
| Supply voltage | 10...30 V DC |
| Interfaces | PROFIBUS DP |
-
5868-5888 Profibus en
