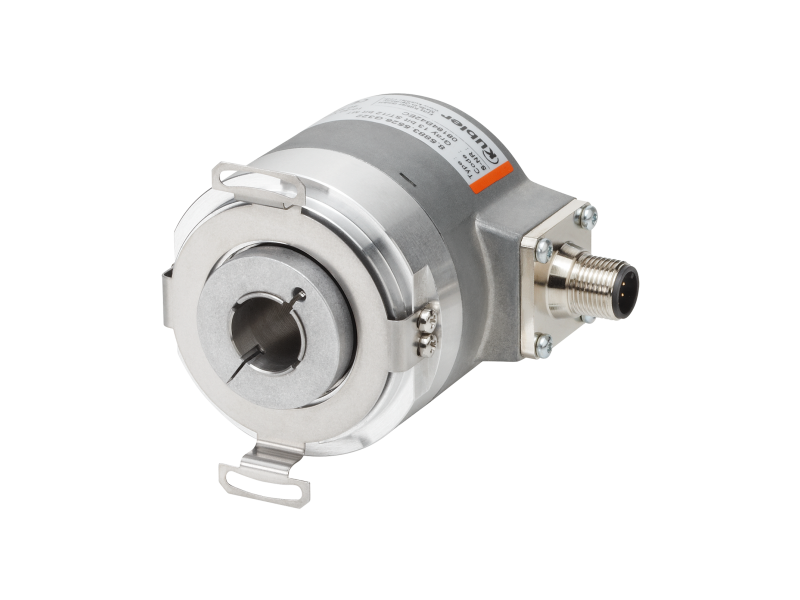

Kuebler Absolute encoder multiturn Sendix F5883 SSI Gray code ; 8.F5883.558E.G323
Kuebler Absolute encoder multiturn Sendix F5883 SSI Gray code...
Cena na upit
Kuebler Absolute encoder multiturn Sendix F5883 SSI Gray code
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, through |
| Flange type |
Ø 46.00 mm Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Radial cable Tangential cable M23 connector radial M12 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 450 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental 17 bits singleturn 24 bits multiturn |
| Supply voltage |
5 V DC 10...30 V DC |
| Interfaces |
SSI + 2048 ppr SinCos BiSS |
