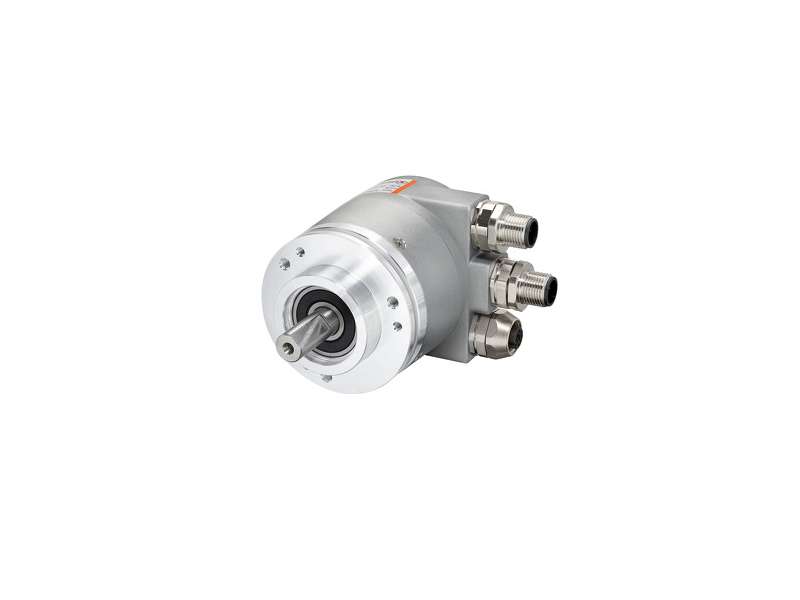

Kuebler Sendix 5858 enkoder sa Profibus-DP interfejsom ; 8.5858. XX3X.311X
For field bus communication: Encoders with PROFIBUS DP interface. The absolute encoders Singleturn Sendix 5858 / 5878 with PROFIBUS DP interface and optical sensors...
Cena na upit
For field bus communication: Encoders with PROFIBUS DP interface.
The absolute encoders Singleturn Sendix 5858 / 5878 with PROFIBUS DP interface and optical sensors are the right solution for all Profibus applications. Distributed over 360°, the maximum resolution is 16 bits. These encoders are available with blind hollow shafts up to 15 mm.
Reliable- Proven use in applications with the highest demands such as wind power or mobile automation.
- IP67 protection and a wide temperature range from -40°C to +80°C make it particularly suitable for outdoor use.
- Fast, simple, error-free connection thanks to variant with M12 plug.
- Extensive programming possibilities by using the latest encoder profile.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm ❏ 63,50 mm |
| Working temperature | -40 °C ... +80 °C |
| Protection level |
IP65 IP67 |
| Connection types |
M12 connector radial Terminal box |
| Max. rotational speed | 9.000 min-1 |
| Weight | 530 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 16 bits singleturn |
| Supply voltage | 10...30 V DC |
| Interfaces | PROFIBUS DP |
-
5858-5878 Profibus en
