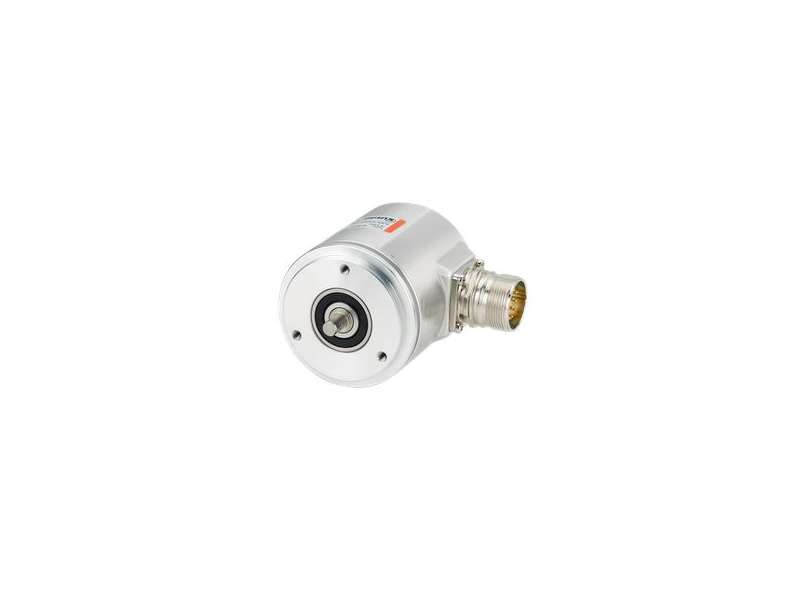

Kuebler Encoders Absolute single turn 5852; 8.5852.XXXX.XXXX
Encoders Absolute singleturn 5852 High speed Resilient Dimension Ø 58 mm 14 bits singleturn Max 10 mm shaft, with flat surface...
Cena na upit
Encoders Absolute singleturn
5852
|
|
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 14 bits singleturn |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces | Parallel Highspeed |
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 58.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level | IP65 |
| Connection types |
Axial cable Radial cable M23 connector axial M23 connector radial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
-
5852-5872 en
