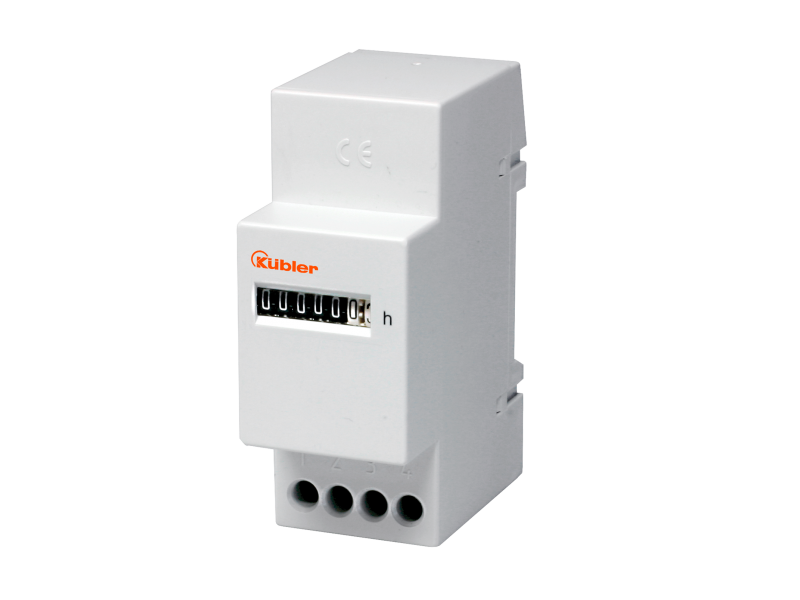

Kuebler Timers for DIN rail mounting, DIN rail housing, 2 modules wide (AC+DC), SH17; 0.170.000.XXX
Timers for DIN rail mounting, DIN rail housing, 2 modules wide (AC+DC), SH17...
Cena na upit
Timers for DIN rail mounting, DIN rail housing, 2 modules wide (AC+DC), SH17
Electrical connection screw terminals
finely-stranded 0 ... 2.5 mm2 [AWG13]
single-wires 0 ... 4 mm2 [AWG11]
tightening torque max. 0.5 Nm
Power consumption DC approx. 1 W
AC approx. 2.5 VA
Rated voltages 24, 115, 230 V AC ±10 %, 50Hz
115 V AC ±10 %, 60Hz
10 ... 27 V DC
On time 100 %
Number of digits 7: 99999.99 h
Height of figures 1.8 x 3.6 mm [0.071 x 0.14“]
Color of figures white on black
Decimal figures black on white
Housing plastic PC (Polycarbonate)
Weight approx. 60 g [2.12 oz]
Color of housing grey, Ral 7035
Reset no reset
Operating temperature AC/DC -10 °C ... +70 °C [+14 °F ... +158 °F]
(non-condensing)
Storage temperature AC/DC -40 °C ... +80 °C [-40 °F ... +176 °F]
Relative humidity ≤ 80 % (non-condensing)
at +25 °C [+77 °F]
Altitude up to 2000 m [6562‘]
Mounting position any
Protection acc. to EN 60529 IP65 (front side)
screw terminal IP20
Vibration resistance 1 g (10 ... 500 Hz) acc. to EN 60028-2-34
Shock resistance 30 g (18 ms) acc. to EN 60068-2-27
25 g (6 ms) acc. to EN 60068-2-29
EMC standards EN 55011 class B
EN 61000-6-2, EN 61000-6-3
Device safety designed to EN 61010 part 1
protection class 2
application area pollution level 2
Accuracy < 0.01%, for all versions
finely-stranded 0 ... 2.5 mm2 [AWG13]
single-wires 0 ... 4 mm2 [AWG11]
tightening torque max. 0.5 Nm
Power consumption DC approx. 1 W
AC approx. 2.5 VA
Rated voltages 24, 115, 230 V AC ±10 %, 50Hz
115 V AC ±10 %, 60Hz
10 ... 27 V DC
On time 100 %
Number of digits 7: 99999.99 h
Height of figures 1.8 x 3.6 mm [0.071 x 0.14“]
Color of figures white on black
Decimal figures black on white
Housing plastic PC (Polycarbonate)
Weight approx. 60 g [2.12 oz]
Color of housing grey, Ral 7035
Reset no reset
Operating temperature AC/DC -10 °C ... +70 °C [+14 °F ... +158 °F]
(non-condensing)
Storage temperature AC/DC -40 °C ... +80 °C [-40 °F ... +176 °F]
Relative humidity ≤ 80 % (non-condensing)
at +25 °C [+77 °F]
Altitude up to 2000 m [6562‘]
Mounting position any
Protection acc. to EN 60529 IP65 (front side)
screw terminal IP20
Vibration resistance 1 g (10 ... 500 Hz) acc. to EN 60028-2-34
Shock resistance 30 g (18 ms) acc. to EN 60068-2-27
25 g (6 ms) acc. to EN 60068-2-29
EMC standards EN 55011 class B
EN 61000-6-2, EN 61000-6-3
Device safety designed to EN 61010 part 1
protection class 2
application area pollution level 2
Accuracy < 0.01%, for all versions
-
SH17 en
