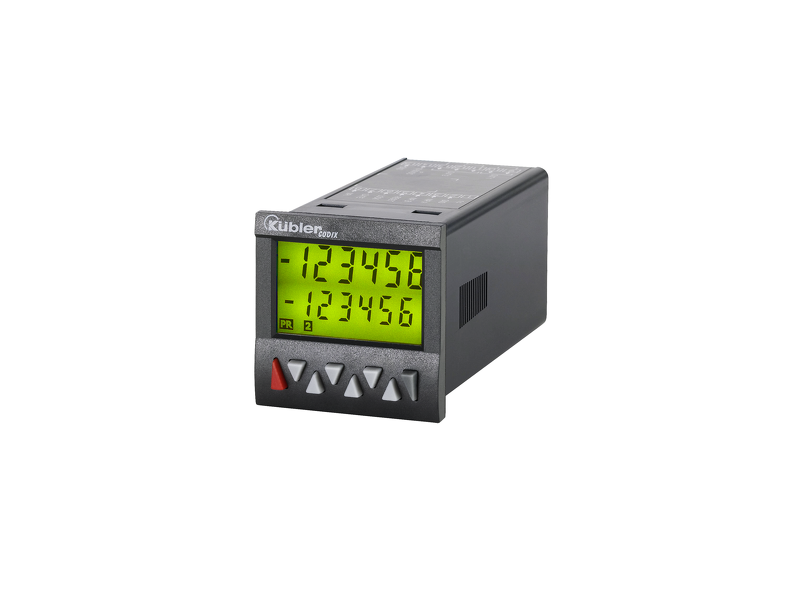

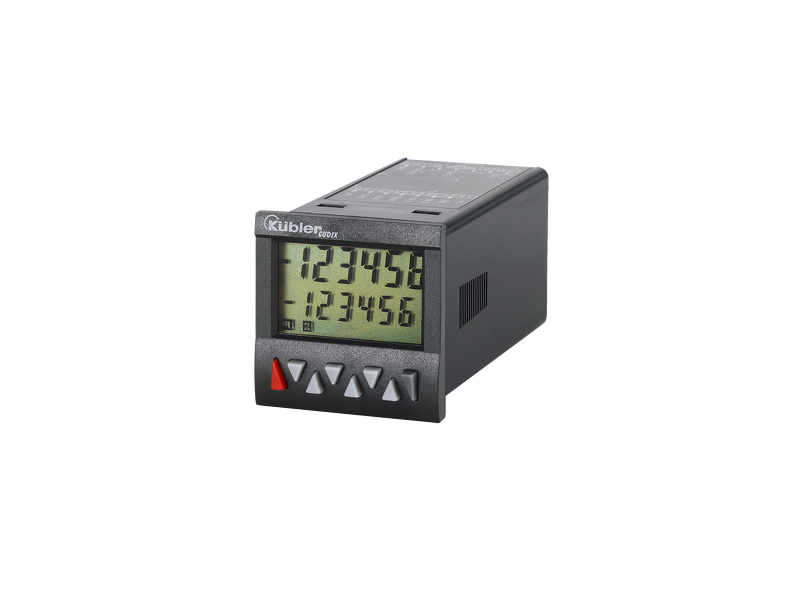

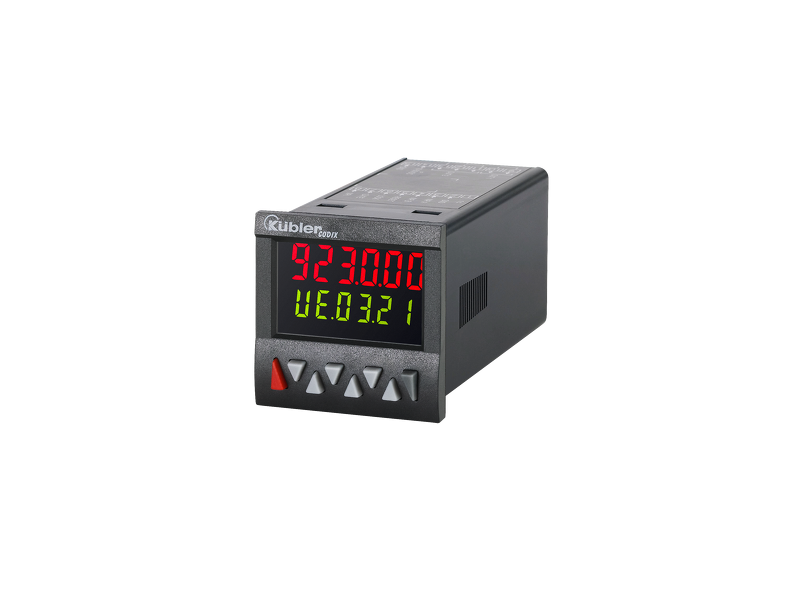

Kuebler Preset counter electronic Codix 923 / 924; 6.92X.01XX.XXX
Pulse preset counter, tachometer or time preset counter with one preset. The Codix 923 / 924 multifunction preset counter can be used universally. As a pulse preset...
Cena na upit
Pulse preset counter, tachometer or time preset counter with one preset.
The Codix 923 / 924 multifunction preset counter can be used universally. As a pulse preset counter, tachometer or time preset counter with up to 6 presets it offers various possibilities to solve control and monitoring tasks in every application. With the 2-line display in 4 different variants, the meter is easy to read and easy to program using the clearly arranged decade keys. More complex controls can also be implemented using a batch counter or total sum function.| Mechanical | |
|---|---|
| Model | Multifunction device electronic |
| Functions |
Multifunction devices Frequency display Time preset counter Short-time meter Tachometer with limit values Position displays with limit values |
| Dimension 1 | 48 x 48 mm | 45 x 45 mm |
| Protection level | IP65 |
| Working temperature | -20 °C ... +65 °C |
| Weight | 125 g |
| Reset | electronic |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
24 (± 10%) V AC 100...240 (± 10%) V AC 10...30 V DC |
| Signal input |
NPN PNP |
| Signal output | 1 x Relais |
-
923-924 en
