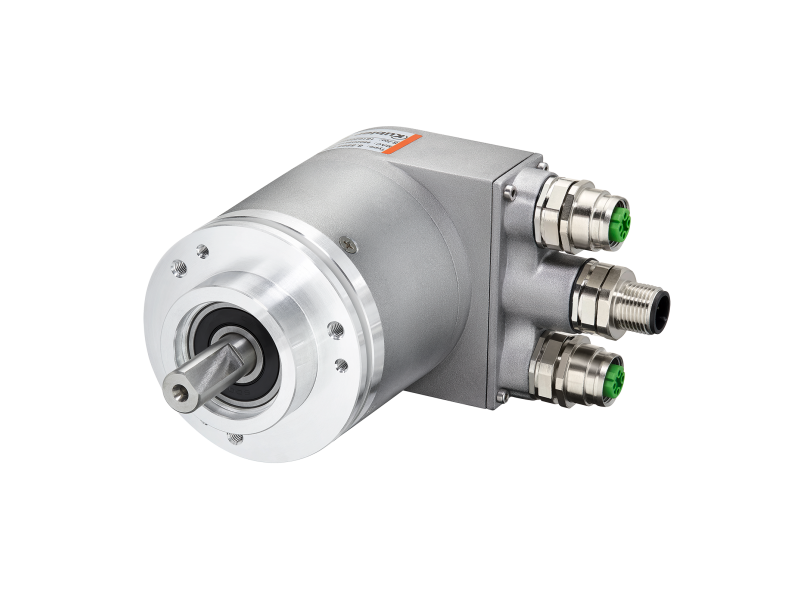

Kuebler Absolute multiturn encoder Profinet Sendix 5868 ; 8.5868.12C2.C212
Kuebler Absolute multiturn encoder Profinet Sendix 5868...
Cena na upit
Kuebler Absolute multiturn encoder Profinet Sendix 5868
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm ❏ 63,50 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types | M12 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 540 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
16 bits singleturn 12 bits multiturn |
| Supply voltage | 10...30 V DC |
| Interfaces | PROFINET IO |
-
5868-5888 Profinet en
